Micro-Lock Plus Wire-to-Board Connector System

Ideal for compact applications, the Micro-Lock Plus Wire-to-Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets automotive and other industry requirements

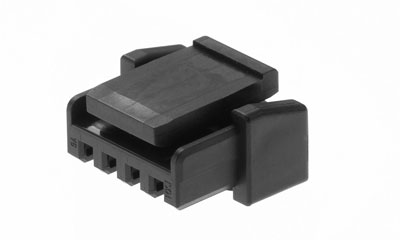

  • 1.25mm Housings

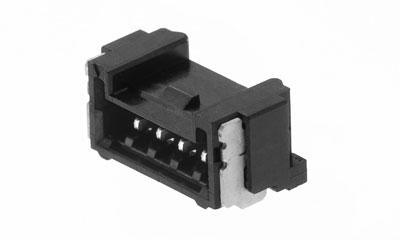

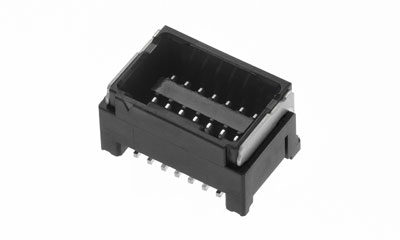

  • 1.25mm Headers

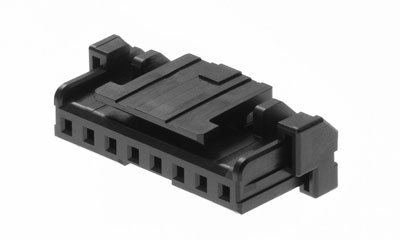

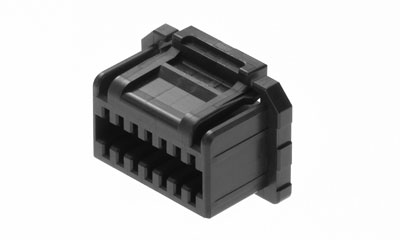

  • 2.00mm Housings

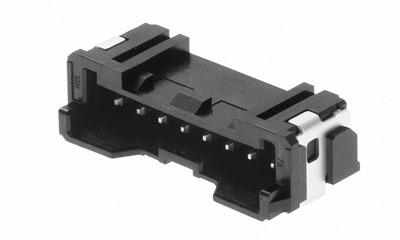

  • 2.00mm Headers

  • Terminals

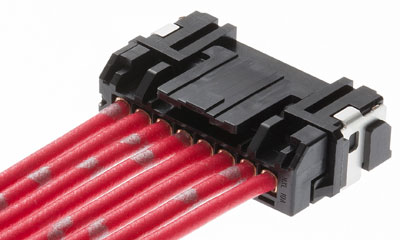

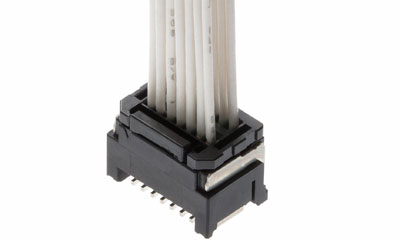

  • Standard OTS Discrete Cable Assemblies

  • 总览
  • 产品图片
  • 特性和优点
  • 应用
  • 文献
  • 其它产品

Micro-Lock Plus terminal retention force provides electrical reliability for automotive and other applications in rugged environments. Rated at a 105˚C operating temperature and 1.5A current rating, the Micro-Lock Plus Connector is ideal for general market applications. Rugged applications can be subject to shock, vibration or rough handling that can dislodge terminals and cause signal interference.

Micro-Lock Plus Connectors have a positive latch that provides an audible click, ensuring a secure mate. In microminiature wire-to-board applications, operators can sometimes mistakenly fail to ensure connectors are fully mated. This, in turn, can lead to end-product failure.


Micro-Lock Plus tin-bismuth plating offers reliability and lower applied costs. Tin plating can sometimes cause whiskering and signal intermittency, while more durable gold plating comes with a higher cost.

Micro-Lock Plus Connector System is the smallest connector currently on the market with a positive lock. Engineers no longer have to choose between compactness and retention security. Often designers have to forgo a positive lock on a connector due to space constraints, sacrificing retention security.

  • Smallest 1.25mm-pitch connector with positive lock

    Delivers secure mating retention without sacrificing compactness

  • Tin-bismuth terminals

    Prevents whiskering for a clean and uninterrupted signal. Supports terminal ruggedness and reliability

  • Inner lock for dual-row versions; outer lock for single-row versions

    Strengthens lock for more reliable connection

  • Withstands up to 105˚C operating temperature

    Meets automotive industry requirements. Withstands harsh environments

  • 2 to 42 circuits, single and dual rows, vertical and horizontal plug configurations

    Offers design flexibility

  • Wide positive latch that delivers audible click

    Wide positive latch that delivers audible click

  • Robust metal solder tabs

    Provides secure PCB retention and strain relief to solder joints

  • Dual contact terminal design

    Offers secure contact and terminal retention


  • Head-, rear-, side-mirror lights
  • Internal connection with other units
  • Shifters
  • Steering wheel, paddle shift, combination switches


  • Air conditioner
  • Desktop PCs
  • Drones
  • Gaming Machines
  • Laser printers
  • Power tools
  • Vacuum cleaners
  • White goods


  • Micro-Lock Plus 1.25mm Pitch Wire-to-Board Connector System

    English | 简体中文

  • Micro-Lock Plus 2.00mm Pitch Wire-to-Board Connector System


  • Micro-Lock Plus Off-the-Shelf Discrete Wire Cable


  • Duo-Clasp™ Wire-to-Board System

    The dual positive-lock design provides superior mating retention, preventing the housing from dislodging after mating

  • PicoBlade Connector System

    A 1.25mm pitch, Wire-to-Wire connector system that offers a balance of performance, size and affordability

  • CLIK-Mate Wire-to-Board Connectors

    Available in 1.50mm, provides lower mating insertion and extraction forces than competitive versions, which makes assembly easier for operators


Wire-to-Board Connectors
1.25 and 2.00mm
2 - 16; 8 - 42
1.0 - 3.0A
