GG-T2

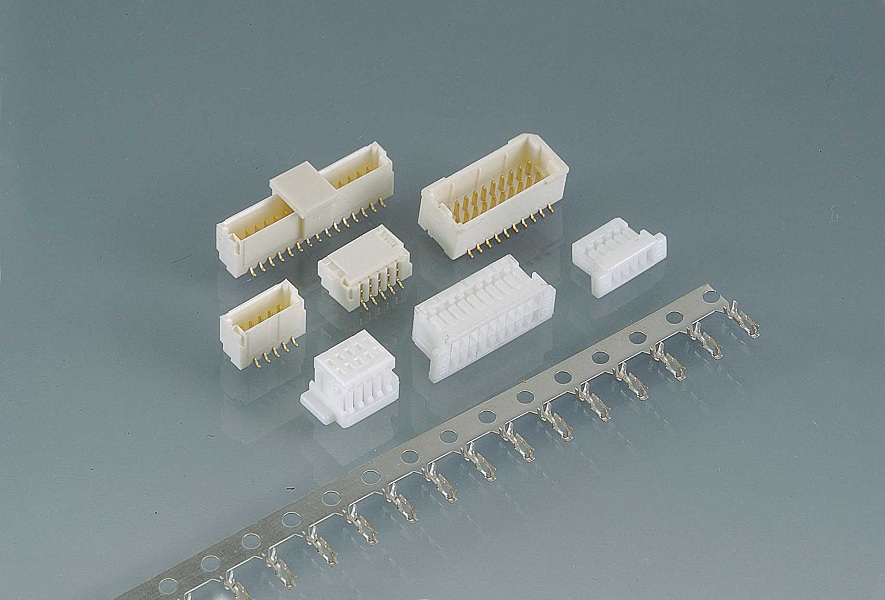

Wire To Board Connector-Cripming Type > 1.00mm

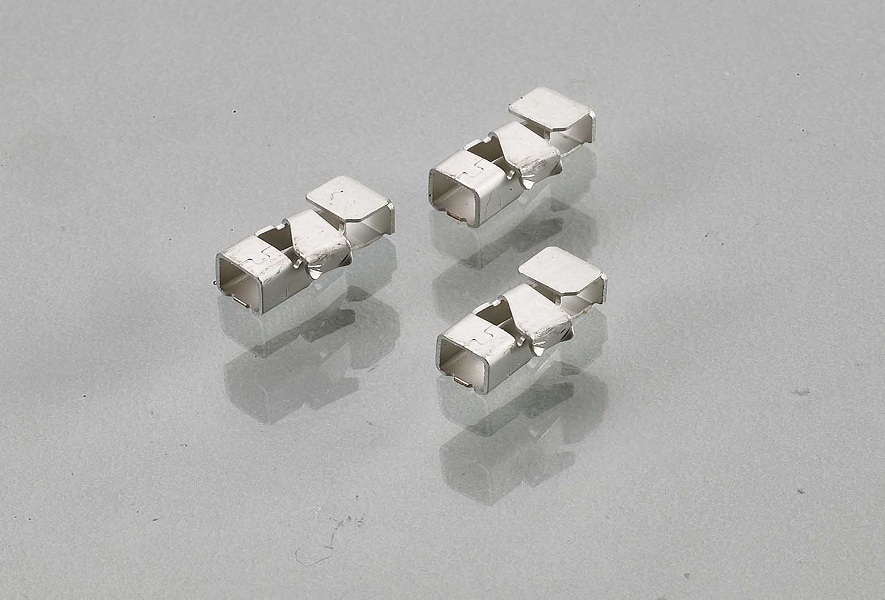

LED Connector-Poke-in connector

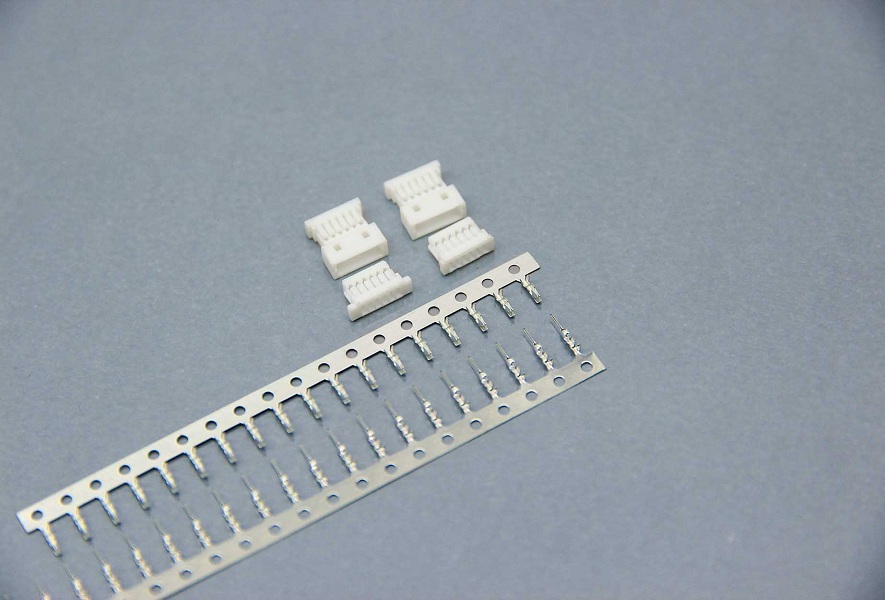

Wire to Wire Connector-1.00mm

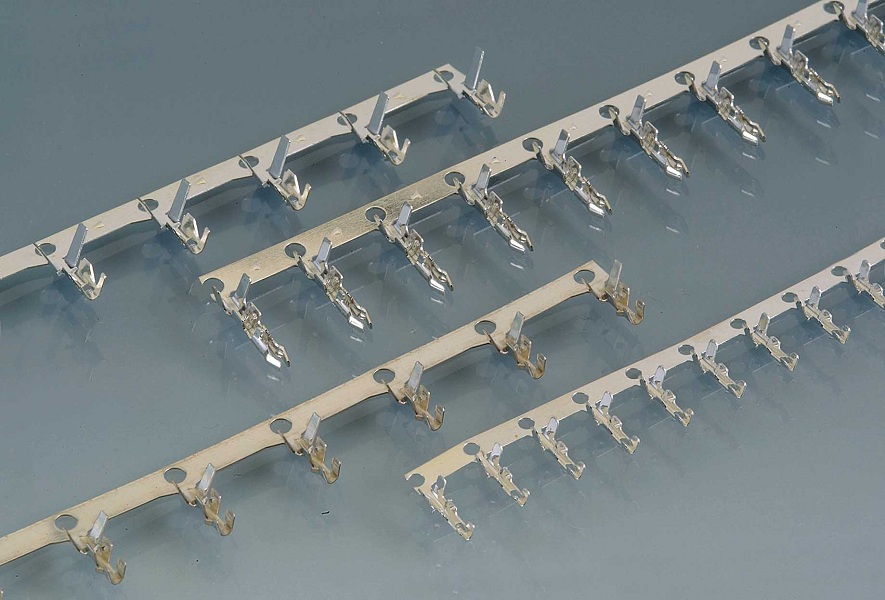

Board In Connector-Ø1.0mm / Ø1.20mm
Board to Board Connector-0.50mm

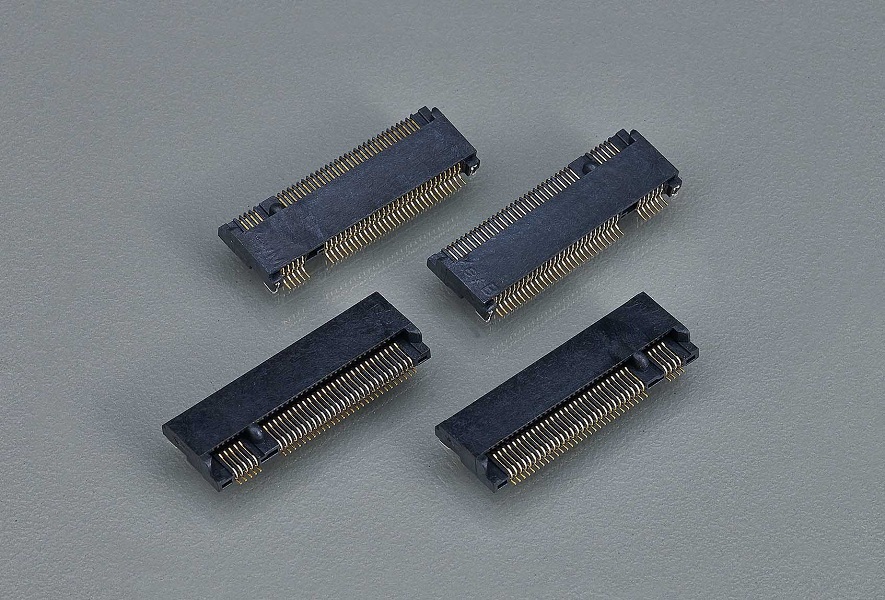

NGFF Connector-67P Connector > 0.50mm
FPC Connector > 0.50mm
参数：
| Circuits | 02~24, 2x04~2x25 |
| Pitch | 1.00mm |
| Current Rating | 1A AC/DC |
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500V AC/minute |
| Insulation Resistance | 100 mΩ MIN. |
| Temperature Range | -40˚C ~ +85˚C |
| Applicable Wire Range | AWG#26~#36 |
相关：
参数：
| Current Rating | AWG# 12 20A AC/DC AWG#14 16A AC/DC AWG#16 14A AC/DC AWG#18 12A AC/DC AWG#20 10A AC/DC AWG#22 8.0A AC/DC AWG#24 7.0A AC/DC AWG#26 4.2A AC/DC AWG#28 4.0A AC/DC |
| Voltage Rating | 300V AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 1600V AC/minute |
| Insulation Resistance | 1000 mΩ MIN. |
| Temperature Range | -40˚C ~ +125˚C |
| Applicable Wire Range | AWG#12~#28 |
相关：
参数：
| Circuits | 1x02-1x20 |
| Pitch | 1.00 mm |
| Current Rating | 1.0A AC/DC |
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 20mΩ MAX. |
| Withstand Voltage | 500V AC/minute |
| Insulation Resistance | 1000 mΩ MIN. |
| Temperature Range | -25˚C ~ +85˚C |
| Applicable Wire Range | AWG#28~AWG#32 |
相关：
参数：
相关：
参数：
| Circuits | 2x05-2x60 |
| Pitch | 0.50mm |
| Current Rating | 0.5A AC/DC |
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 30 mΩ MAX. |
| Withstand Voltage | 100V AC/minute |
| Insulation Resistance | 100 mΩ MIN. |
| Temperature Range | -25˚C ~ +105˚C |
相关：
参数：
| Circuits | 67 |
| Pitch | 0.50mm |
| Current Rating | 0.5A AC/DC |
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 55 mΩ MAX. |
| Withstand Voltage | 300V AC/minute |
| Insulation Resistance | 500 mΩ MIN. |
| Temperature Range | -40˚C ~ +80˚C |
相关：
参数：
| Circuits | 04-60 |
| Pitch | 0.50mm |
| Current Rating | 0.5A AC/DC |
| Voltage Rating | 50V AC/DC |
| Contact Resistance | 30 mΩ MAX. |
| Withstand Voltage | 500V AC/minute |
| Insulation Resistance | 500 mΩ MIN. |
| Temperature Range | -25˚C ~ +85˚C |
相关：
注：同一系列不同规格参数有所不同，以实际为准，请 联系我们 以获得解决方案支持。
