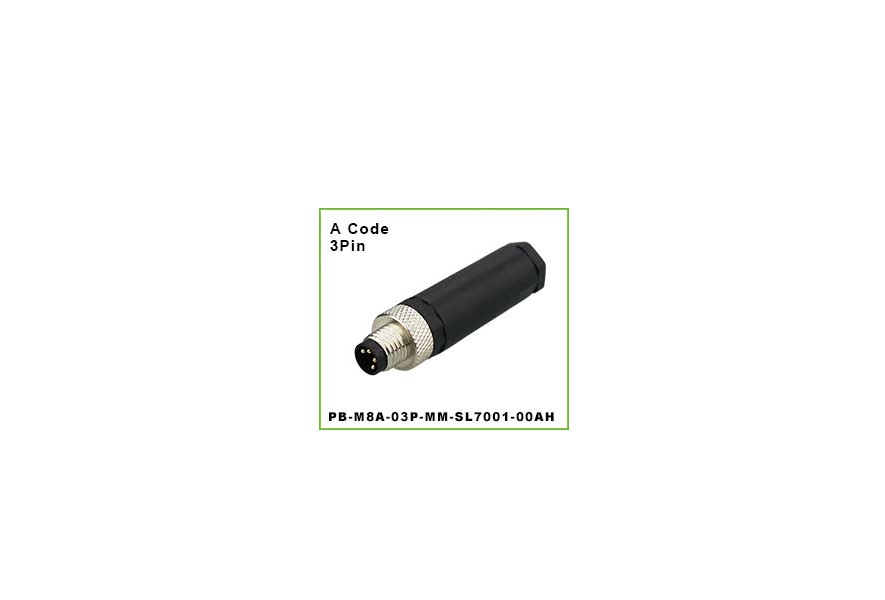

圆形连接器M8
重载连接器-插体类DA系列
描述：
技术参数：
| Specification/技术参数 | |
| Convention/常规 | |
| Standard/标准 | M8 IEC 61076-2-104 |
| Number of contacts/芯数 | 3 |
| Coding/防插错编码 | A - coded |
| Connector Style/连接头样式 | 180°母头 |
| Termination/接线方式 | Screw connection/螺钉连接 |
| Wire gauge/线规 | 0.25/0.34 mm2 / (22/24 AWG) |
| Cable OD/线缆外径 | 3.5~5.0mm |
| Operating temperature/工作温度 | -25 °C ... 85 °C |
| IP Rating/防护等级 | IP67 |
| Mechanical operation/插拔次数 | >100 |
| Torque/扭矩 | 0.3 Nm ... 0.4 Nm (M8 knurl/ M8螺圈) |
| 0.5 Nm (Connector with coupling sleeve/带连接套筒的连接器) | |
| 0.3 Nm ... 0.4 Nm (Pressure screw for outer cable diameter 3 .5mm ... 4mm用于外径为3 mm ... 4 mm的电缆的压力螺) | |
| 0.8 Nm ... 1 Nm (Pressure screw in the case of external cable diameter 4 mm ... 5 mm外部电缆直径为4 mm ... 5 mm时使用的压力螺钉) | |
| 0.1 Nm (Screw terminal blocks/螺钉接线端子) | |
| Installation type/安装类型 | Assemble/组装 |
| Electrical properties/电气性能 | |
| Rated current (40oC)/额定电流 | 4A |
| Rated voltage/额定电压 | 60V AC,60V DC |
| Rated surge voltage/额定脉冲电压 | 1.5Kv |
| Contact resistance/接触电阻 | <10mΩ |
| Insulation resistance/绝缘电阻 | ≥100MΩ |
| Degree of pollution/污染等级 | 3 |
| Overvoltage category/过电压类别 | II |
| Material/材料 | |
| Flammability rating according to UL 94/阻燃等级符合UL 94 | V0 |
| Contact material/接触件材料 | CuZn/铜锌镀层 |
| Contact surface material/材料接触表面 | Au |
| Contact material/接触件载体材料 | PA |
| Sealing material/密封材料 | FKM / NBR / Silicon |
| Environmental protection/环保 | ROSH |
| Key Commercial Data/关键商业数据 | |
| MOQ/最小起订量 | 10 PCS |
相关:
描述：
技术参数：
| 项 目 (Item) | 数 据 (Data) |

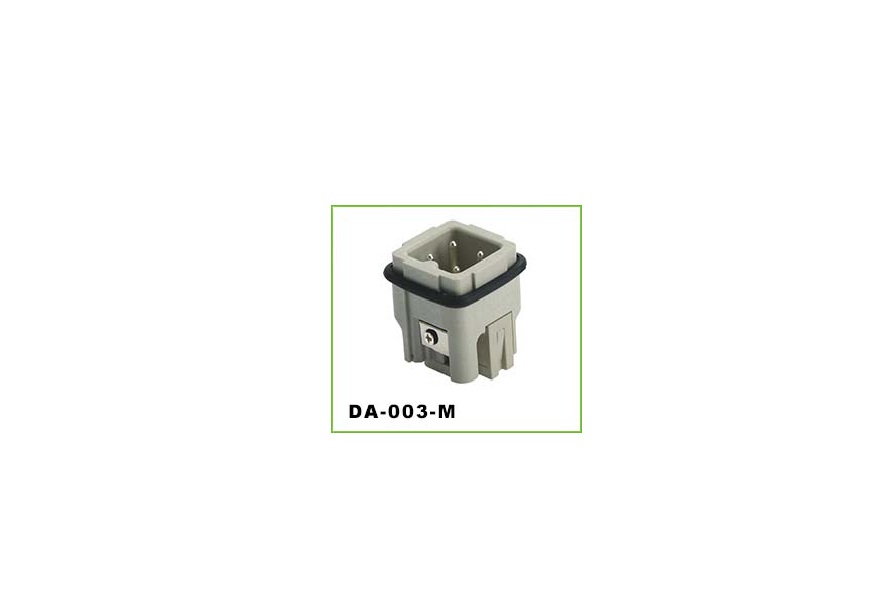

| 插芯（Inserts) | 匹配D3A外壳体 (MatchingD3A Hoods&Housings) |
| 认证(APPROVAL) | UL.CSA.VDE.CE.CQC |
| 测试标准(Test standard) | DIN EN61 984 / UL1977 |
| 极数(Poles) | 3P+PE |
| 是否需要另订购冷压针 (The need for additional or dering crimp contacts) | 否No |
| EN61984测试数据（EN61984 Test data) | / |
| 额定电压(Rated voltage) [V] | 250 |
| 额定电流(Rated current) [A] | 10 |
| 污染等级 (pollution degree) | 3 |
| 额定冲击电压(Rated impulse voltage) [KV] | 4 |
| 绝缘电阻(Insulation resistance) | ≥1010Ω |
| UL/CSA额定电压（ UL/CSARated current ) [V] | 600 |
| 材料(Material) | Polycarbonate |
| 阻燃等级（Inflammability class)UL94 | V-0 |
| 环境温度(Ambient temperature) [℃] | -40~+125 |
| 插拔次数（Mechanical working life(mating cycles) | ≥500 |
| 插针（Contacts) | |
| 材料(Material) | 铜合金(Copper alloy) |
| 表面处理（Surface) | 镀银(Hard-silver plated) |
| 接触电阻Contact resistance | ≤1mΩ |
| 连接方式（Terminal） | 螺钉连接(Screw terminal) |
| 额定扭矩(Rated torque) [N·m] | 0.25 |
| 额定连接容量(Rated connection capacity)(solid/stranded) | 1.0-2.5mm² (AWG18-14) |
| 螺丝(Screw) | M3,钢,镀镍 (Steel，Ni plated ) |
| 接线方法 (Wire connecting) | |
| 推荐剥线长度7.5mm; Recommended stripping length 7.5mm; | |
| 1.）单股硬导线，剥好对应长度的导线后，用额定的扭力拧紧；For solid wire, stripping wire to the appointed length, then tightening with rated torque. | |
| 2.）多股柔性导线，剥好对应长度的导线后，可以直接连接或者配套使用对应标准规格的冷压端头，用额定的扭力拧紧；For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque. | |
| 注意事项：扭力要平稳，不能使用爆发力；( Tightening process should be steady, can’t use explosive force.) | |
相关:
注：同一系列不同规格参数有所不同，以实际为准，请 联系我们 以获得解决方案支持。
