HF (LSOH) wire_产品导航_东莞市工高电子科技有限公司

描述:

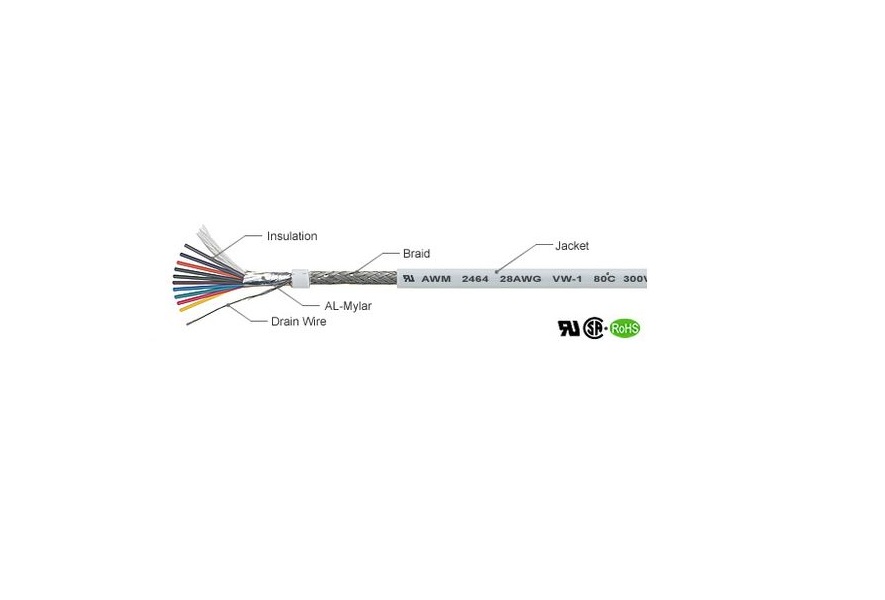

= Conductor: Stranded Tinned Copper
= Insulation: FRPE/HF material
= Shield:Aluminum/Mylar foil with stranded,tinned copper drain wire plus overall braid of tinned copper
= Jacket: FRPE/HF material

产品特性:

= Rated Temperature: 80℃
= Voltage Rating: 300 Volt
= LSOH Wire & Cable halogen(CI,F,Br,I,At)<50ppm
= Passes UL VW-1SC vertical flame test

应用:

= Computer cables for EIA RS-232 and CAD/CAM application

参数:

UL Style & CSA Type	Conductor		No.of Cores	Insulation Thickness	Braid Shield	Jacket Thickness	Overall Diameter	Nominal Capa.		Standard Put-Up
	Conductor			Insulation Thickness	Braid Shield	Jacket Thickness	Overall Diameter	A	B	Ft/Coil	M/Coil
	AWG	No./mm		mm	mm	mm	mm	pF/ft	pF/ft	Ft/Coil	M/Coil
UL21143 CSA I/II A (AWM)	28	7/0.127	3	0.25	16/5/0.120	0.8	4.20±0.15	28	51	1000	305
			4		16/5/0.120	0.8	4.60±0.15	28	51	1000	305
			5		16/6/0.120	0.8	4.70±0.15	28	51	1000	305
			6		16/6/0.120	0.8	5.00±0.15	26	47	1000	305
			7		16/6/0.120	0.8	5.20±0.15	26	47	1000	305
			8		16/6/0.120	0.8	5.40±0.15	26	47	1000	305
			9		16/6/0.120	0.8	5.50±0.15	26	47	1000	305
			10		16/8/0.120	0.8	5.80±0.15	26	47	1000	305
			15		16/8/0.120	0.85	6.40±0.15	26	47	1000	305
			25		24/8/0.120	1.00	8.10±0.20	26	47	500	152
			37		24/8/0.120	1.00	8.90±0.25	26	47	500	152
			50		24/8/0.120	1.00	10.10±0.30	26	47	500	152
UL21143 CSA I/II A (AWM)	26	7/0.160	3	0.25	16/6/0.120	0.80	4.50±0.15	32	52	1000	305
			4		16/6/0.120	0.80	4.70±0.15	32	52	1000	305
			5		16/6/0.120	0.80	5.00±0.15	32	52	1000	305
			6		16/7/0.120	0.80	5.30±0.15	28	51	1000	305
			7		16/7/0.120	0.80	5.40±0.15	28	51	1000	305
			8		16/7/0.120	0.80	5.60±0.20	28	51	1000	305
			9		16/8/0.120	0.80	6.00±0.15	28	51	1000	305
			10		16/8/0.120	0.80	6.30±0.20	28	51	1000	305
			15		16/8/0.120	0.85	7.00±0.20	28	51	1000	305
			25		24/8/0.120	1.00	8.60±0.25	28	51	500	152
			37		24/7/0.120	1.00	9.70±0.25	28	51	500	152
			50		24/8/0.120	1.00	11.00±0.30	28	51	500	152
UL21143 CSA I/II A (AWM)	24	7/0.200	3	0.25	16/5/0.120	0.80	4.10±0.15	35	65	1000	305
			4		16/5/0.120	0.80	4.60±0.15	35	65	1000	305
			5		16/6/0.120	0.80	4.90±0.15	35	65	1000	305
			6		16/6/0.120	0.80	5.10±0.15	30	55	1000	305
			7		16/8/0.120	0.80	5.10±0.15	30	55	1000	305
			8		16/8/0.120	0.80	5.50±0.20	30	55	1000	305
			9		16/8/0.120	0.85	5.80±0.20	30	55	1000	305
			10		16/8/0.120	0.85	6.20±0.20	30	55	1000	305
			15		16/9/0.120	0.85	6.90±0.20	30	55	1000	305
			25		24/8/0.120	1.00	8.60±0.20	30	55	500	152
			37		24/8/0.120	1.00	9.80±0.25	30	55	500	152
			50		24/10/0.120	1.00	11.40±0.30	30	55	500	152
UL21143 CSA I/II A (AWM)	22	7/0.252	3	0.25	16/8/0.120	0.80	5.30±0.15	37	67	1000	305
			4		16/8/0.120	0.80	5.60±0.15	37	67	1000	305
			5		16/8/0.120	0.80	6.10±0.15	37	67	1000	305
			6		16/8/0.120	0.80	6.30±0.15	35	63	1000	305
			7		16/8/0.120	0.80	6.30±0.15	35	63	1000	305
			8		16/8/0.120	0.85	6.90±0.15	35	63	1000	305
			9		24/9/0.120	0.85	7.30±0.25	35	63	1000	305
			10		24/9/0.120	0.85	7.40±0.25	35	63	1000	305
			15		24/9/0.120	0.85	8.30±0.25	35	63	1000	305
			25		24/9/0.120	1.00	10.60±0.25	35	63	500	152
			37		24/10/0.120	1.00	11.90±0.30	35	63	500	152
			50		24/10/0.120	1.00	13.50±0.30	35	51	500	152
UL21143 CSA I/II A (AWM)	18	34/0.176	2	0.40	16/8/0.120	0.80	6.50±0.20	70	120	1000	305
			3		16/8/0.120	0.80	6.60±0.20	70	120	1000	305
			4		24/8/0.120	0.85	7.30±0.25	70	120	1000	305
			5		24/8/0.120	0.85	7.90±0.25	70	120	500	152
