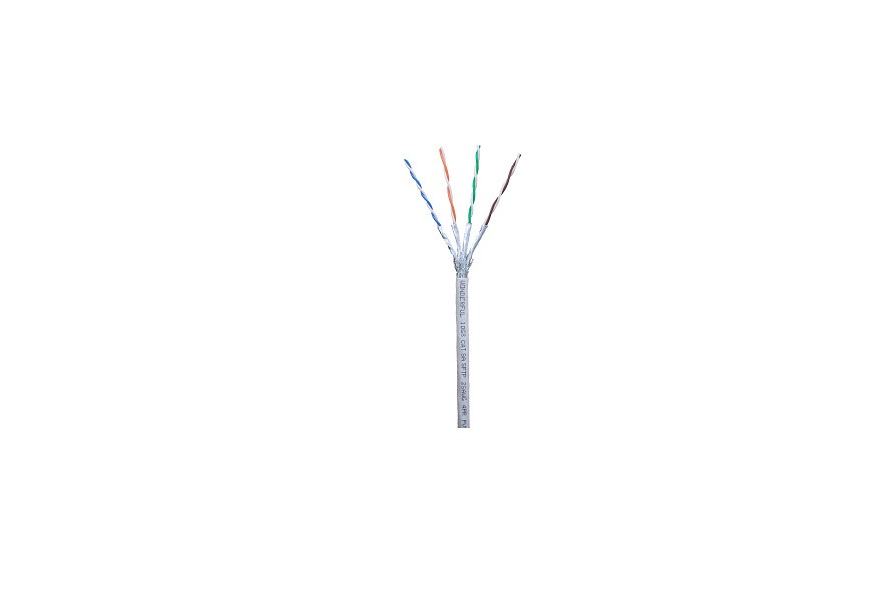

= Conductor : Stranded Bare Copper (26AWG)
= Insulation : Foamskin PE
= Twisting : 2 cores to the pair
= Foil : Laminated aluminium-polyester (Aluminium facing outside)
= Shielded : 4, all twisted together
= Braid : Solid tinned copper (≥ 30% coverage)
= Jacket : LSZH
线缆数据:
产品特性:
= Characteristic Impedance : 100 ± 5Ω (100MHz)
= DC Resistance, Unbalance of a Pair : 2% MAX
= Capacitance Unbalance(Pair to Ground) : 160pF/100m MAX
= Delay Skew : 45 ns/100m MAX
应用:
= As data Patch cord in Patch panels and equipment connection cable.
= For the transmission of digital and analogue voice and data signals and flexible working station cablinglong patch cables.
